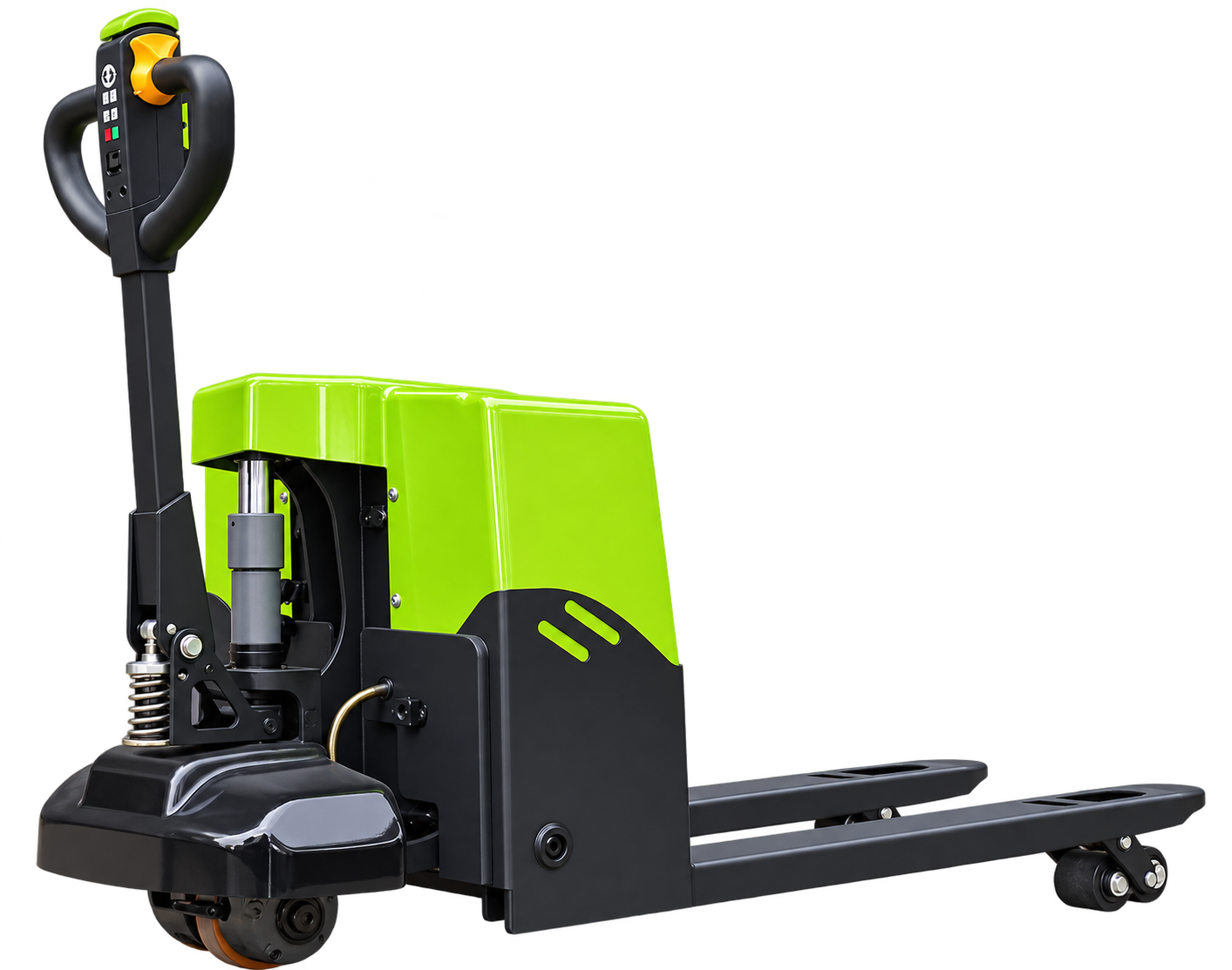

“Bull Demon” Series Fully Electric Pallet Jack (Compact Model)

Key Technical Specifications

Rated load capacity: 3t
Overall dimensions: 1700 × 685 × 1150 mm
Fork dimensions: 1200 × 160 × 50 mm
Outer fork width: 550/685 mm
Inner fork width: 230/365 mm

Operation method: Electric lifting
Drive motor power: 48V 1500W
Lift motor power: 48V 1200W
Drive wheel specifications: Φ170 × 55 mm
Load wheel specifications: Φ80 × 70 mm

Dimensions marked in the diagram: 1240 mm, 680 mm, 685 mm, 550/685 mm, 1200 mm, 1700 mm.
