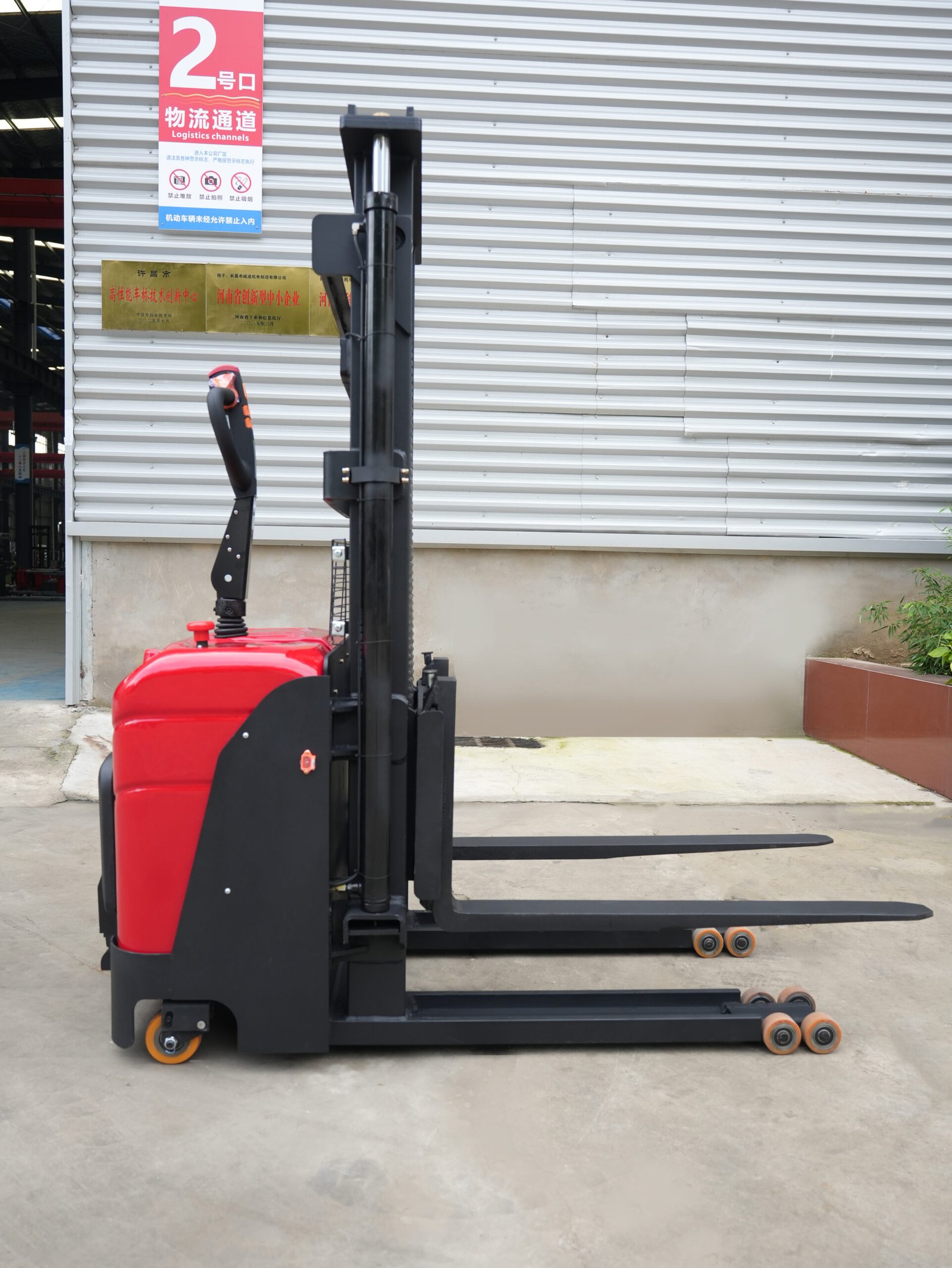

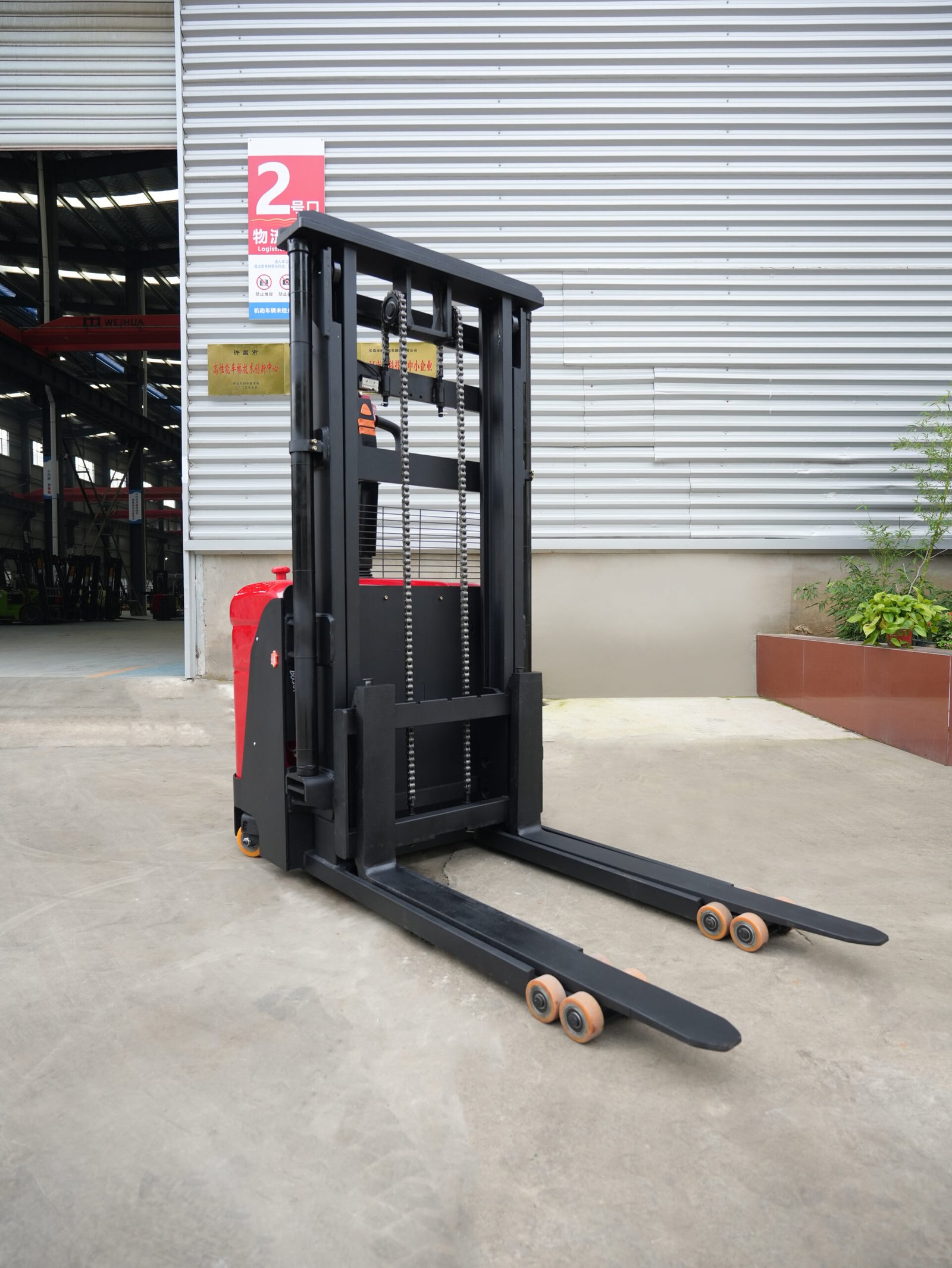

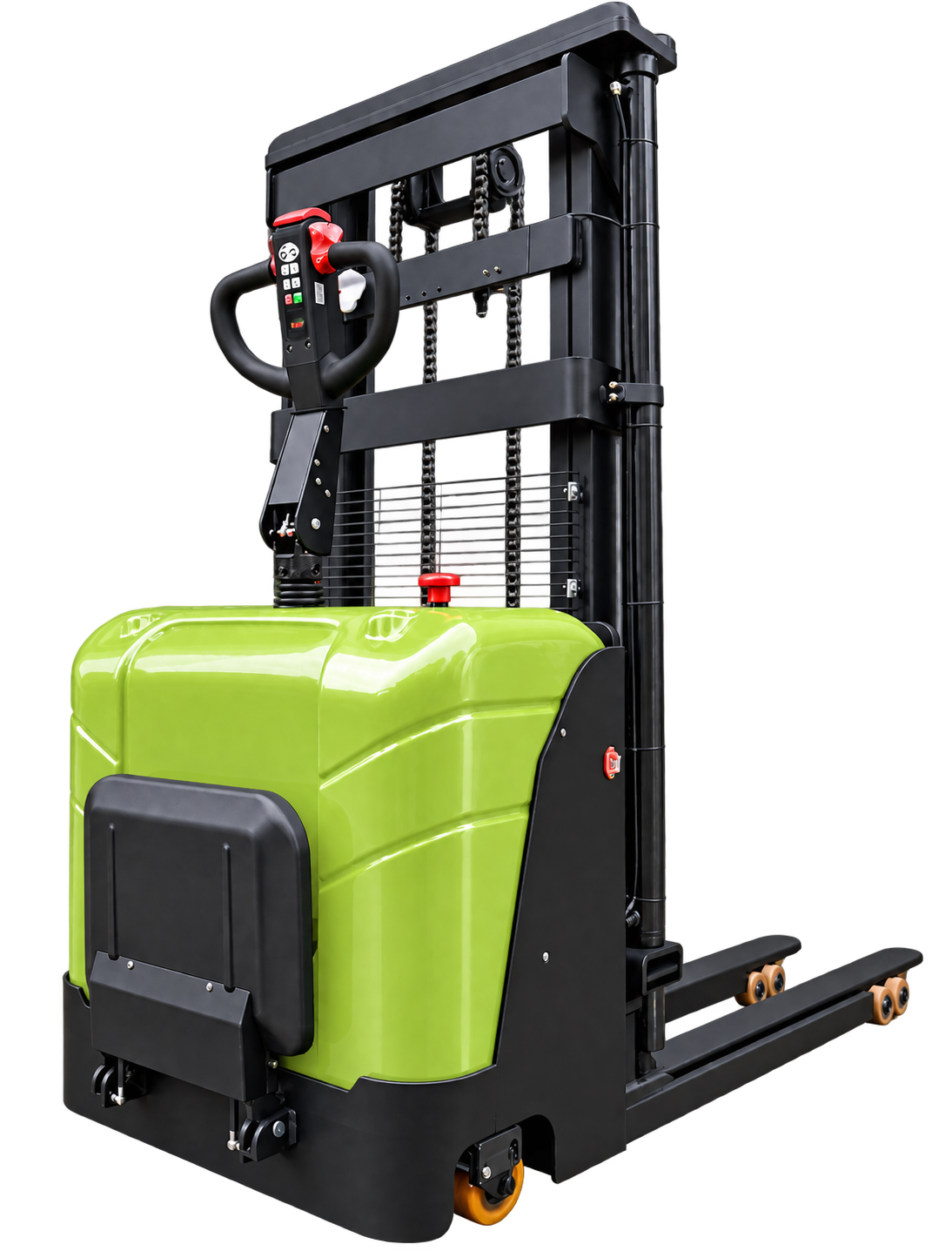

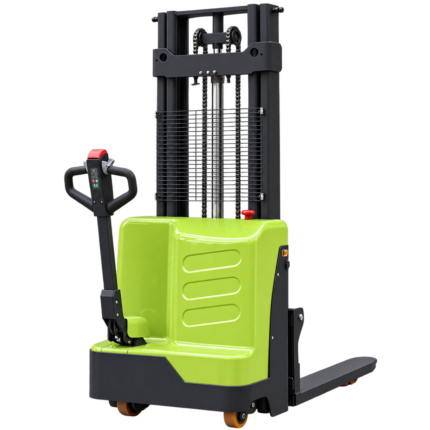

2.5-ton stacker

Key Technical Specifications

Rated Load Capacity: 2.5 t
Overall Dimensions: 2397 × 850 × 2040 mm

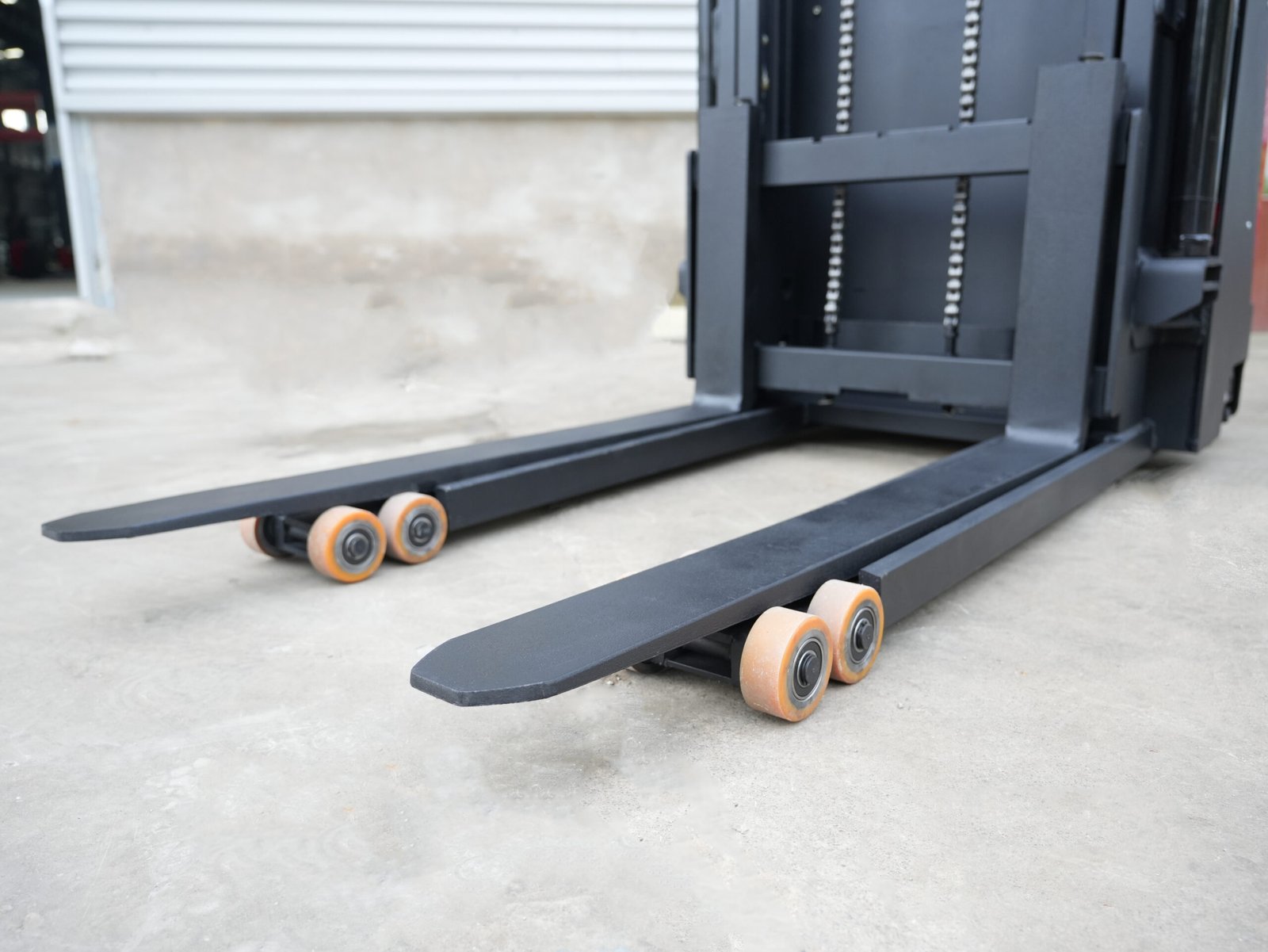

Fork Dimensions: 1070 × 100 × 40 mm
Outer Fork Width: 663 mm
Inner Fork Width: 463 mm

Operation Method: Electric lifting
Drive Motor Power: 48 V / 2000 W
Lift Motor Power: 48 V / 3000 W
Drive Wheel Size: Φ170 × 55 mm
Load Wheel Size: Φ80 × 35 mm
